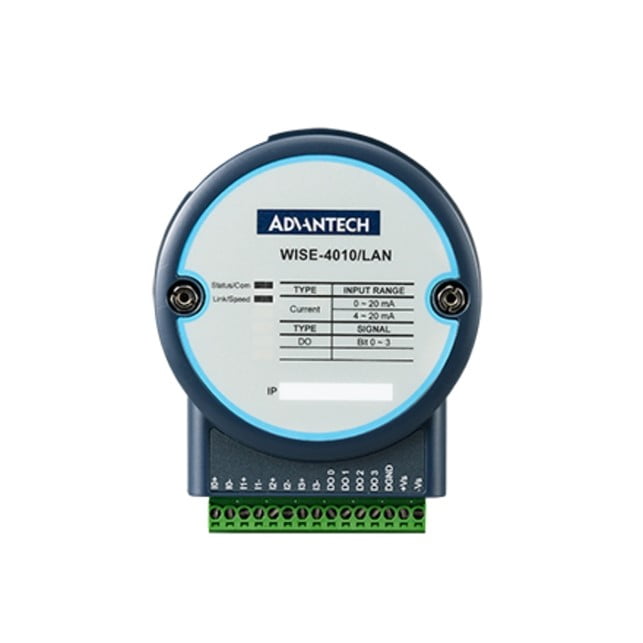

Advantech 4-ch CI 4-ch DO IoT Ethernet I/O Module (WISE-4010LAN-B)
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports RESTful web API in JSON format
- Supports local logging with RTC time stamp
- Supports mobile device web configuration in HTML5
- Supports 10~30 VDC power with reverse protectio
Deskripsi
| Category | Attribute | Value |
| Analog Input | Channels | 4 |
| Analog Input | Input Range | 0~20 mA, 4~20 mA |
| Analog Input | lnput Type | mA |
| Analog Input | Resolution(Bits) | 12-bit |
| Analog Input | Sampling Rates(S/s) | 10/100 S/s (per channel) |
| General | Connectors | 1 x RJ45, 1 x 15-pin plug-in screw terminal |
| General | Protocol | Modbus/TCP, TCP/IP, UDP, HTTP, DHCP |
| Communications | Interface | Ethernet |
| Digital Output | Channels | 4 (TTL) |
| Digital Output | Voltage Rating | 0~30 VDC |
| Environment | Operating Temperature | -40~70 °C (-40~158 °F) |
| Environment | Storage Humidity | 0~95% RH (non-condensing) |
| Environment | Storage Temperature | -40~85 °C (-40~185 °F) |
| Power Requirements | Input Voltage | 10~30 VDC |
Informasi Tambahan
| Brand |
Advantech |
|---|
